Various system components

Heating armature/charging groups
Heating armature group mixer circuit flow left DN 20

Heating armature group mixer circuit flow left DN 20

Compact armature group for transporting, mixing and adjusting the heating medium in the heating circuit. Installation on the right (heating flow / pump on left), thermally insulated.

Range of applications: can be combined with Hoval modular wall distributor - for new buildings and renovations.

Heating armature group mixer circuit flow left DN 25

Heating armature group mixer circuit flow left DN 25

Compact armature group for transporting, mixing and adjusting the heating medium in the heating circuit. Installation on the right (heating flow / pump on left), thermally insulated.

Range of applications: can be combined with Hoval modular wall distributor - for new buildings and renovations.

Heating armature group mixer circuit flow left DN 32

Heating armature group mixer circuit flow left DN 32

Compact armature group for transporting, mixing and adjusting the heating medium in the heating circuit. Installation on the right (heating flow / pump on left), thermally insulated.

Range of applications: can be combined with Hoval modular wall distributor - for new buildings and renovations.

Heating armature group mixer circuit flow right DN 20

Heating armature group mixer circuit flow right DN 20

Compact armature group for transporting, mixing and adjusting the heating medium in the heating circuit. Installation on the left (heating flow / pump on right), thermally insulated.

Range of applications: can be combined with Hoval modular wall distributor - for new buildings and renovations.

Heating armature group mixer circuit flow right DN 25

Heating armature group mixer circuit flow right DN 25

Compact armature group for transporting, mixing and adjusting the heating medium in the heating circuit. Installation on the left (heating flow / pump on right), thermally insulated.

Range of applications: can be combined with Hoval modular wall distributor - for new buildings and renovations.

Heating armature group mixer circuit flow right DN 32

Heating armature group mixer circuit flow right DN 32

Compact armature group for transporting, mixing and adjusting the heating medium in the heating circuit. Installation on the left (heating flow / pump on right), thermally insulated.

Range of applications: can be combined with Hoval modular wall distributor - for new buildings and renovations.

Heating armature group mixer circuit flow left / (right) DN 40-50

Heating armature group mixer circuit flow left / (right) DN 40-50

Compact armature group for transporting, mixing and adjusting the heating medium in the heating circuit. Installation on the left or right (heating flow / pump on right or left), thermally insulated.

Range of applications: can be combined with Hoval modular wall distributor - for new buildings and renovations.

Charging/heating armature group direct/charging circuit DN 20

Charging/heating armature group direct/charging circuit DN 20

Compact armature group for transporting, mixing and adjusting the heating medium, for connecting a free-standing calorifier or as a direct heating circuit. Installation on the right (heating flow / pump on left), thermally insulated.

Range of applications: for new buildings and renovations.

Charging/heating armature group direct/charging circuit DN 25

Charging/heating armature group direct/charging circuit DN 25

Compact armature group for transporting, mixing and adjusting the heating medium, for connecting a free-standing calorifier or as a direct heating circuit. Installation on the right (heating flow / pump on left), thermally insulated.

Range of applications: for new buildings and renovations.

Charging/heating armature group direct/charging circuit DN 32

Charging/heating armature group direct/charging circuit DN 32

Compact armature group for transporting, mixing and adjusting the heating medium, for connecting a free-standing calorifier or as a direct heating circuit. Installation on the right (heating flow / pump on left), thermally insulated.

Range of applications: for new buildings and renovations.

Heating armature group direct/charging circuit DN 40-50

Heating armature group direct/charging circuit DN 40-50

Compact armature group for transporting, mixing and adjusting the heating medium, for connecting a free-standing calorifier or as a direct heating circuit. Installation on the right or left (heating flow / pump on left or right), thermally insulated.

Range of applications: for new buildings and renovations.

LG-2 Compact charging groups DN 25

LG-2 Compact charging groups DN 25

Compact armature group for transporting, mixing and adjusting the heating medium, for directly connecting to a free-standing calorifier , in the supply line or on the boiler, thermally insulated.

Range of applications: for new buildings and renovations.

Configurable heating distributors
TransShare

TransShare

Custom-made, turnkey, insulated distributor with distribution system in various hydraulic variants.

Range of applications: for any requirements - for new buildings and renovations.

Simply speak to our experts!

TransShare Standarddesign

TransShare Standarddesign

For the TransShare standard design energy distributor, different heating circuits can be built onto the heating circuit distributor. An individual energy distributor can be assembled depending on the selected standard design.

Range of applications: for any requirements - for new buildings and renovations.

Simply speak to our experts!

3-way and 2-way valves
3-way valve YXG48.. PN 16, 130 °C DN 15-40

3-way valve YXG48.. PN 16, 130 °C DN 15-40

Three-way valve with cast iron valve body with threaded connection, incl. seals and screw connections and choice of suitable motor-based drives.

Range of applications: distribution, switching or mixing - for new buildings and renovations.

3-way valve VXG41.50, PN 16, 130 °C DN 50

3-way valve VXG41.50, PN 16, 130 °C DN 50

Three-way valve with gunmetal valve body with threaded connection, incl. seals and screw connections and choice of suitable motor-based drives.

Range of applications: distribution, switching or mixing - for new buildings and renovations.

3-way valve VXF22.. PN 6, 130 °C DN 25-100

3-way valve VXF22.. PN 6, 130 °C DN 25-100

Three-way valve with cast iron valve body with flange connection inc. counter flanges, screws and seals and choice of suitable motor-based drives.

Range of applications: distribution, switching or mixing - for new buildings and renovations.

3-way valve VXF32.150, PN 10, 130 °C DN 150

3-way valve VXF32.150, PN 10, 130 °C DN 150

Three-way valve with cast iron valve body with flange connection inc. counter flanges, screws and seals and choice of suitable motor-based drives.

Range of applications: distribution, switching or mixing - for new buildings and renovations.

2-way valve YVG48.. PN 16, 130 °C DN 15-40

2-way valve YVG48.. PN 16, 130 °C DN 15-40

Through valve with cast iron valve body with threaded connection, incl. seals and screw connections and choice of suitable motor-based drives.

Range of applications: control, shut-off - for new buildings and renovations.

2-way valve VVG41.. PN 16, 130 °C DN 50

2-way valve VVG41.. PN 16, 130 °C DN 50

Through valve with gunmetal valve body with threaded connection, incl. seals and screw connections and choice of suitable motor-based drives.

Range of applications: control, shut-off - for new buildings and renovations.

2-way valve VVF22.. PN 6, 130 °C DN 25-100

2-way valve VVF22.. PN 6, 130 °C DN 25-100

Through valve with cast iron valve body with flange connection inc. counter flanges, screws and seals and choice of suitable motor-based drives.

Range of applications: control, shut-off - for new buildings and renovations.

3-way mixer

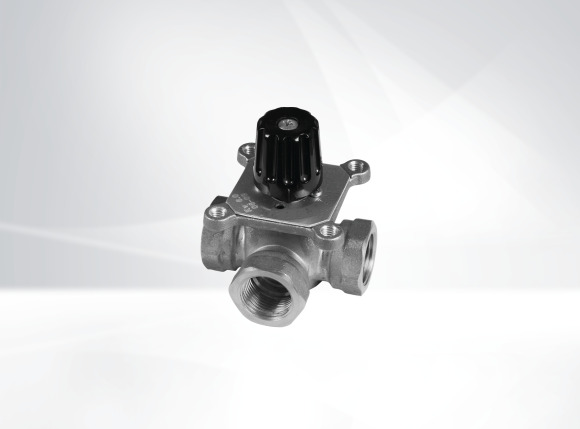

3-way valve B3G460, PN 10, 110 °C, without drive DN 15-50

3-way valve B3G460, PN 10, 110 °C, without drive DN 15-50

Three-way valve with brass valve body and female thread for manual operation or operation with motor-based drive.

Range of applications: mixing valve - for new buildings and renovations.

TM200, PN 10, 30-60 °C DN 20

TM200, PN 10, 30-60 °C DN 20

Thermostatic three-way mixing valve for regulating domestic water temperature. Brass valve body with external thread.

Range of applications: regulation of domestic water temperature - for new buildings and renovations.

JRG, PN 10, 45-65 °C DN 25-65

JRG, PN 10, 45-65 °C DN 25-65

Thermostatic three-way mixing valve for regulating domestic and heating water temperature. Valve body made of red brass with external thread or flange connection.

Range of applications: regulation of domestic and heating water temperature - for new buildings and renovations.

3-way and 2-way ball valves
Switching ball valve VBI60.. PN 40, 120 °C DN 15-50

Switching ball valve VBI60.. PN 40, 120 °C DN 15-50

Switching ball valve with brass ball valve body with threaded connection.

Range of applications: switching - for new buildings and renovations.

2-way ball valve VAG60.. PN 16, 120 °C DN 15-50

2-way ball valve VAG60.. PN 16, 120 °C DN 15-50

Straight way ball cock with brass ball cock body with threaded connection, incl. seals, screw connections and a cap and choice of suitable motor-based drives.

Range of applications: shutting off, switching - for new buildings and renovations.

Motor drives and butterfly valves
Pressure expansion tanks
Reflex N, wall installation, 6 bar, 70 °C N 8-25

Reflex N, wall installation, 6 bar, 70 °C N 8-25

Container with diaphragm and nitrogen cushion for static pressure control with threaded connection, wall installation.

Range of applications: closed heating and cold water systems - for new buildings and renovations.

Reflex N, floor installation, 6 bar, 70 °C N 35-1000

Reflex N, floor installation, 6 bar, 70 °C N 35-1000

Container with diaphragm and nitrogen cushion for static pressure control with threaded connection,free-standing model with feet (wall installation possible up to N 80).

Range of applications: closed heating and cold water systems - for new buildings and renovations.

Reflex F flat-form vessel, wall installation, 6 bar, 70 °C F 18-24

Reflex F flat-form vessel, wall installation, 6 bar, 70 °C F 18-24

Flat container with diaphragm and nitrogen cushion for static pressure control with threaded connection, wall installation.

Range of applications: closed heating and cold water systems - for new buildings and renovations.

Reflex C disc shape, wall installation, 6 bar, 70 °C C 18-80

Reflex C disc shape, wall installation, 6 bar, 70 °C C 18-80

Disc-shaped container with diaphragm and nitrogen cushion for static pressure control with threaded connection, wall installation.

Range of applications: closed heating and cold water systems with anti-freeze agent up to 50 % - for new buildings and renovations.

Reflex S solar wall/floor installation, 10 bar, 70 °C S 8-600

Reflex S solar wall/floor installation, 10 bar, 70 °C S 8-600

Container with diaphragm and nitrogen cushion for static pressure control with threaded connection, type S 8-33 wall installation, type S 50-600 floor-mounted with feet.

Range of applications: solar plants or closed heating and cold water systems with anti-freeze agent up to 50 % - for new buildings and renovations.

Reflex V intermediate tank, wall/floor installation, 10 bar, 120 °C V 6-350

Reflex V intermediate tank, wall/floor installation, 10 bar, 120 °C V 6-350

Intermediate tank with threaded connection in type V 6-60 or flange connection in type V 200-350. Type V 6-20 wall installation, type V 40-350 floor-mounted with feet.

Range of applications: temporary storage solution for added volume caused by increasing temperature, buffer storage tank - for new buildings and renovations.

Sludge separator with magnet

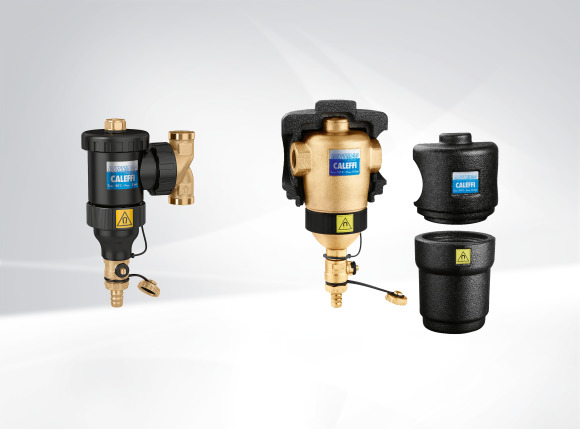

Sludge separator with magnet MB3/L DN 25-50

Sludge separator with magnet MB3/L DN 25-50

Casing and connections made of brass, for fast and continuous removal of ferromagnetic and non-magnetic dirt and sludge particles.

Range of applications: plants with water (max. glycol content of 50 %) - for new buildings and renovations.

Sludge separator with magnet BE DN 50-100

Sludge separator with magnet BE DN 50-100

Casing and connections made of steel (St 37.2), for fast and continuous removal of magnetic and non-magnetic dirt and sludge particles from heating or cooling circuits. Max. operating pressure: 10 bar.

Range of applications: plants with the medium water or water/glycol (50/50 %) - for new buildings and renovations.

System water protection filter
System water protection filter FGM, FF 050-200

System water protection filter FGM, FF 050-200

Magnetic protection filter for filtration of heating and cooling water, with high filtration capacity for corrosion particles and dirt. Filter head and bowl in brass.

Range of applications: for new buildings and renovations.

Hydraulic switches
Hydraulic switch with deaerator MHK DN 25-32

Hydraulic switch with deaerator MHK DN 25-32

Hydraulic switch for disengaging flow rate in heat generators and for separating air, gas and dirt from the heating medium. Thermally insulated, with automatic ventilation.

Range of applications: systems with multiple heat generators, even solar, plants, can be combined with Hoval modular wall distributor - for new buildings and renovations.

Hydraulic switch with deaerator MH DN 40-200

Hydraulic switch with deaerator MH DN 40-200

Hydraulic switch for the hydraulic separation of multiple independent heat generators from the heating circuits. Thermally insulated, with automatic ventilation.

Range of applications: systems with multiple heat generators, even solar plants - for new buildings and renovations.

Plate heat exchanger
PHE welded

PHE welded

Danfoss plate heat exchanger with new Micro Plate technology.

Suitable for systems with Hoval Thermalia, UltraSource, Belaria pro heat pumps and further applications with system separation. - for new buildings and renovations.

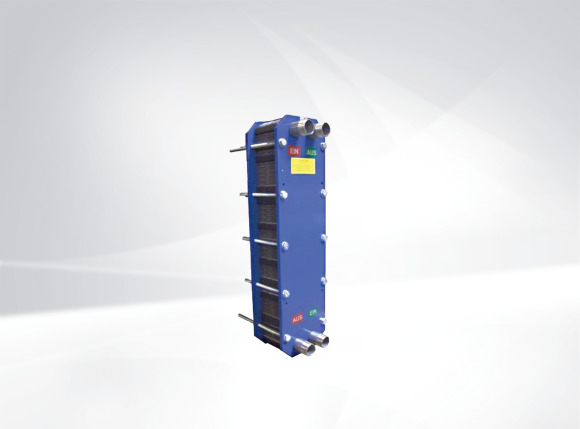

PHE screwed

PHE screwed

SONDEX plate heat exchanger

Suitable for system separation in systems with Hoval Thermalia, UltraSource and further applications. - for new buildings and renovations.
